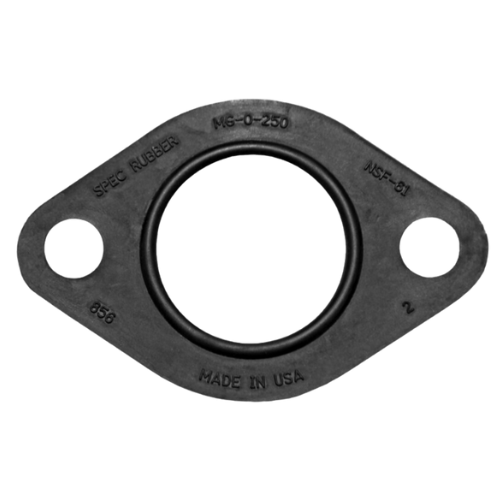

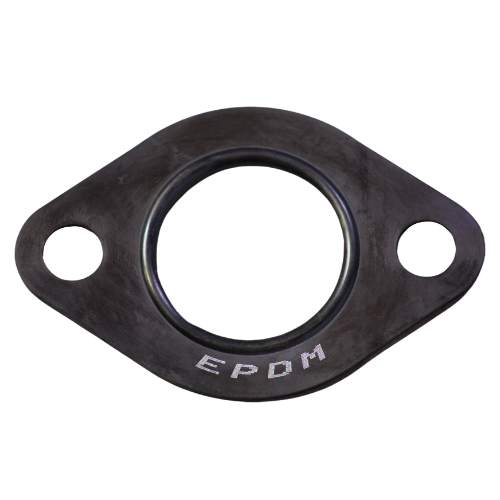

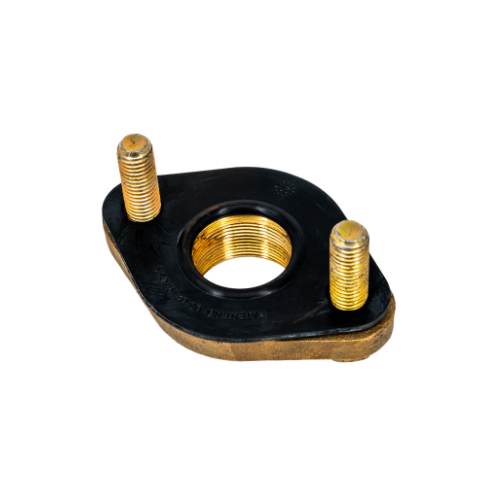

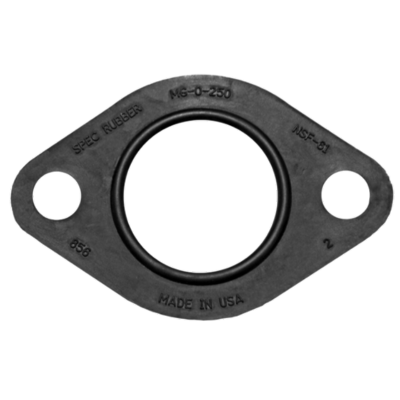

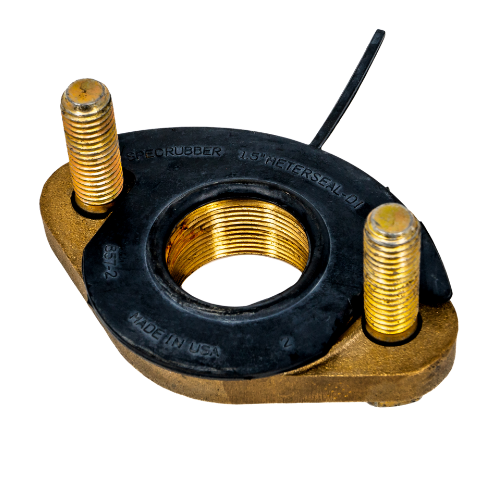

MeterSeal™ Water Meter Gaskets

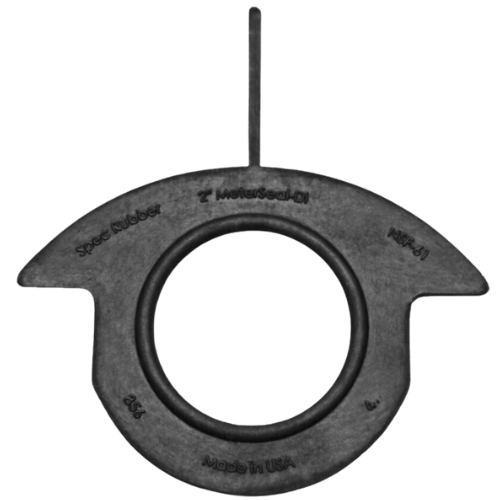

The MeterSeal™ gasket contains a raised bead on the i.d. of the gasket. The raised bead allows for sealing to occur prior to gasket compression. The raised bead also allows for uneven bolt torques, as the bead will compress before the gasket. The drop-in MeterSeal™ gasket has a patented tab that allows for precise placement of the gasket.
Specifications
MeterSeal™ oval and tabbed are available in 1-1/2″ & 2″ I.D.
Standard MeterSeal™ gaskets are NSF-61 EPDM
Other polymer compounds, including SBR, NBR, Neoprene, and FKM, are available upon request
All SBR, EPDM, NBR, and FKM Meterseals are NSF-61 certified
Rated up to 200 PSI
MeterSeal™ gaskets meet the physical properties specified in Table 4 of ANSI/AWWA C111/A21.11.
100% manufactured in the USA
100% BABA Compliant
Request a Quote for MeterSeal™ Water Meter Gaskets
The MeterSeal™ Molded Meter Gasket is available with little to no lead time. Call us at (800) 633-3415 or fill out this form to request a free sample or place an order.
