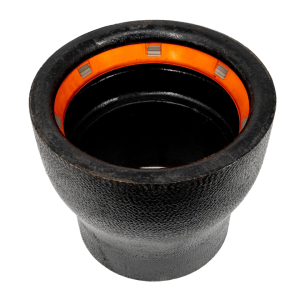

Barracuda® Restrained Joint (RJ) Gaskets
STATS
- Licensed TYTON® Joint Manufacturer
- Barracuda® RJ gaskets are molded in SAFETY ORANGE in EPDM, SBR and Nitrile
- SAFETY ORANGE compound allows visual confirmation that a restrained joint gasket is installed
- Rated up to 350 PSI and fully warranted by Specification Rubber
- In stock for immediate shipment
- Gaskets available in 4" - 16"
- Manufactured in accordance with ANSI/AWWA C111/A21.11 Rubber Gasket Joints for Ductile Iron Pressure Pipe and Fittings
- NSF Certified/ UL compliant
- Made in the USA
- Suitable for water, wastewater and other related applications
EPDM Sheet Rubber Material
STATS
- NSF-61 Certified
- Formulated to meet or exceed ANSI/AWWA C111/A21.11 compound requirements
- EPDM Elastomer sulfur cured 75 Shore A Black, Smooth Finished
- Branded “EPDM NSF-61 Made in USA” for ease of identification
- 1/16”, 1/8”, 1/4” and 1/2” thicknesses available
- Sold by the linear foot or in roll lengths
- Stocked and ready for immediate shipment
- Produced in the USA under a stringent ISO quality system
Filler Flange Gaskets
STATS
- Stocked in 3”- 12"
- Available up to 36" in one solid piece - larger sizes available (4 segment/dovetailed)
- Full Face and Ring Style
- NSF-61 EPDM
- 1/16”, 1/8”, 1/4” and 1/2” thicknesses
- 250 psi • Up to three gaskets can be stacked to fill 1 1/2”
Mechanical Joint (MJ) Gaskets
STATS
- Stocked in 3”-48”
- Larger sizes available upon request
- Available in NSF-61 SBR, EDPM, Nitrile and FKM
- Neoprene also available
Mechanical Joint Transition Gaskets
STATS
- Stocked in 2”- 12”
- Larger sizes available upon request
- Available in NSF-61 SBR, EPDM, Nitrile and FKM
- Neoprene also available
- MJ x SDR35 available upon request
MeterSeal™ EPDM Rubber Gaskets
STATS
- 200 psi
- Molded bulb on ID improves sealing with mismatched faces and uneven torque on bolts
- MeterSeal™ oval and tabbed available in 1 1/2" & 2” ID
- Available in NSF-61 SBR, Nitrile and FKM
- Neoprene also available

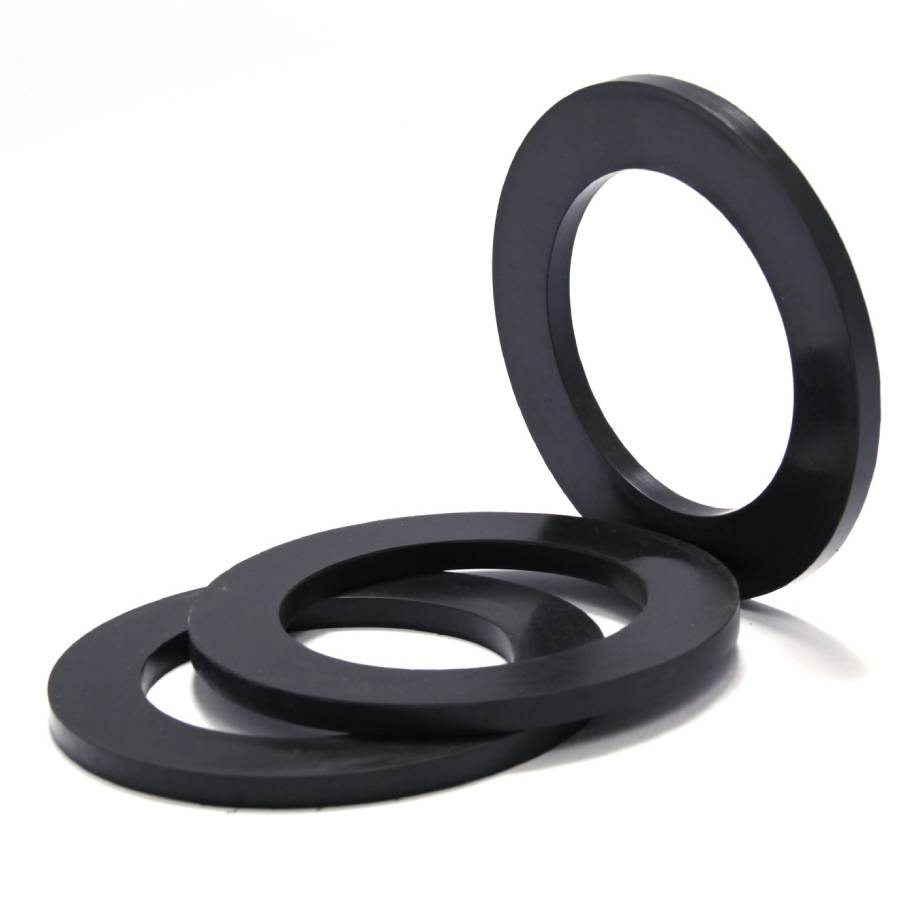

NSF-61 Flat Gaskets
STATS
- Full Face and Ring Style
- NSF-61 EPDM
- Stocked in 3”- 12″
- Available up to 36″ in one solid piece – larger sizes available (4 segment/dovetailed)
- 1/8” thickness (see Filler Flange gaskets for additional options)
- Designed for use with standard flange bolts
- Holes can be cut to match any bolt configuration
- Manufactured in the USA under strict quality control procedures governed by ISO 9001:2015
Nut & Bolt Kits
STATS
- 2”- 64” available upon request
- Domestic and Import
- Aluminum, Stainless Steel and Zinc coatings available. For other options, please call for more info.

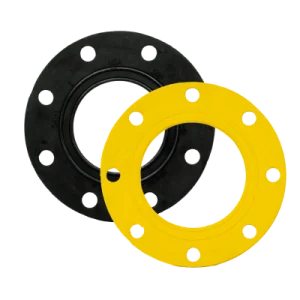

Toruseal® Rubber Gaskets
STATS
- Available in 2” - 64”
- 1/8” thickness, 150# bolt pattern with dual raised torus bulbs
- 250-350 psi rated working pressure
- Available in NSF-61 SBR, EPDM, Nitrile and FKM
- Neoprene also available

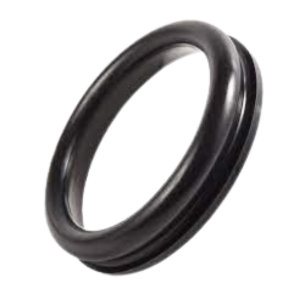

Tyton® Rubber Gaskets
STATS
- Available in 3" - 48"
- Available in NSF-61 SBR, EPDM, Nitrile and FKM
- Neoprene also available
Water Meter Gaskets
STATS
- Standard water meter gaskets are available in EPDM.
- All standard EPDM water meter gaskets are NSF-61 certified.
- Water Meter gaskets are rated up to 150 PSI.
- Water Meter gaskets are currently stocked in 1 1/2" and 2” ID. Other sizes available upon request.
- Available in 1/16", 1/8", 1/4" and 1/2" thickness
- Drop-in water meter gaskets have a patented tab to assist with installation.
- Water Meter gaskets meet the physical properties specified in table 4 of ANSI/AWWA C111/A21.11.
- All water meter gaskets are manufactured in the U.S.A.
- NSF Certified/ UL compliant
